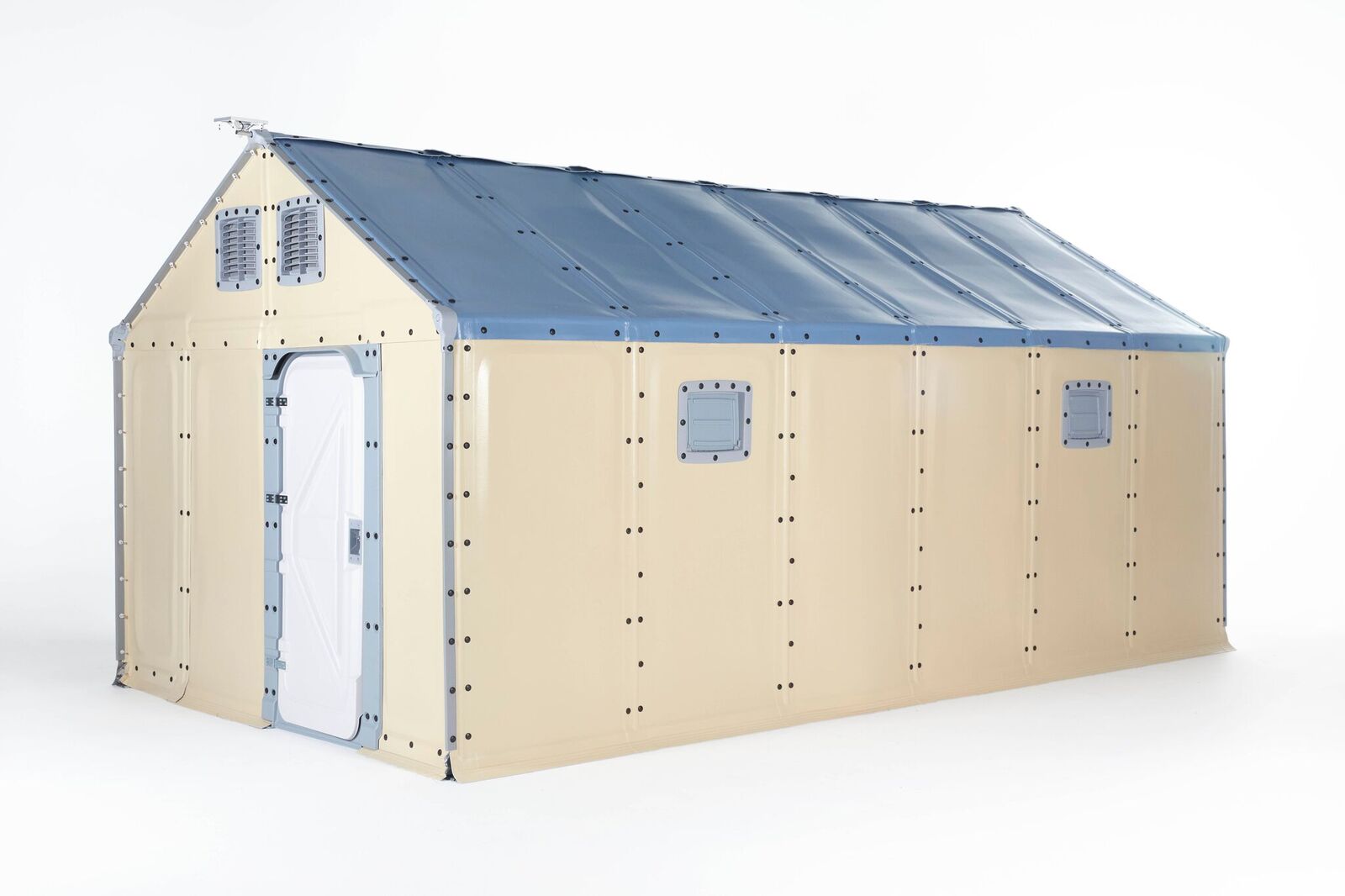

Relief Housing Unit (RHU)

A resistant shelter that arrives with all parts in a flatpack and is easy to assemble for immediate safety and dignity in emergency response.
All in a box

The RHU is the last safety net when nothing else works. Residents can move into a dignified shelter from start.

Modular

Multi-sectoral use in different contexts and climates. Can be upgraded overtime to prolong lifespan.

Dignified, safe, temporary

While temporary, the RHU offers conflict and disaster affected families a higher level of safety, protection and dignity.

Features and measurements

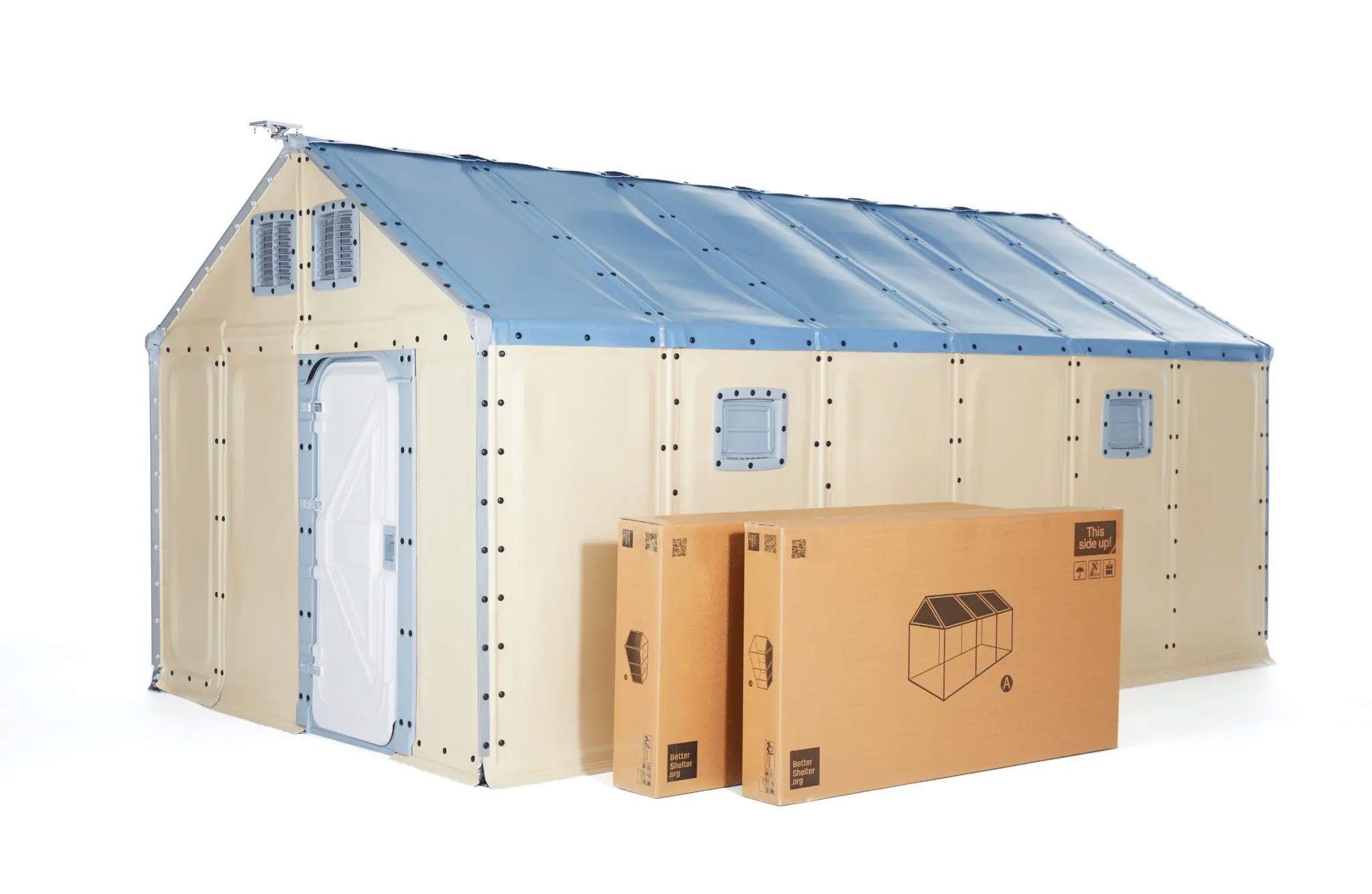

  • Delivered in two flatpacks, ready to assemble
  • Includes roof and wall panels, lockable door, solar lamp and charger
  • Simple to build, can be used the same day it arrives
  • Standardised parts for fast, reliable projects
  • Multi-purpose: housing, health, education, community use

Lockable door

4 windows

4 ventilations

Semi-rigid, opaque roof and wall panels

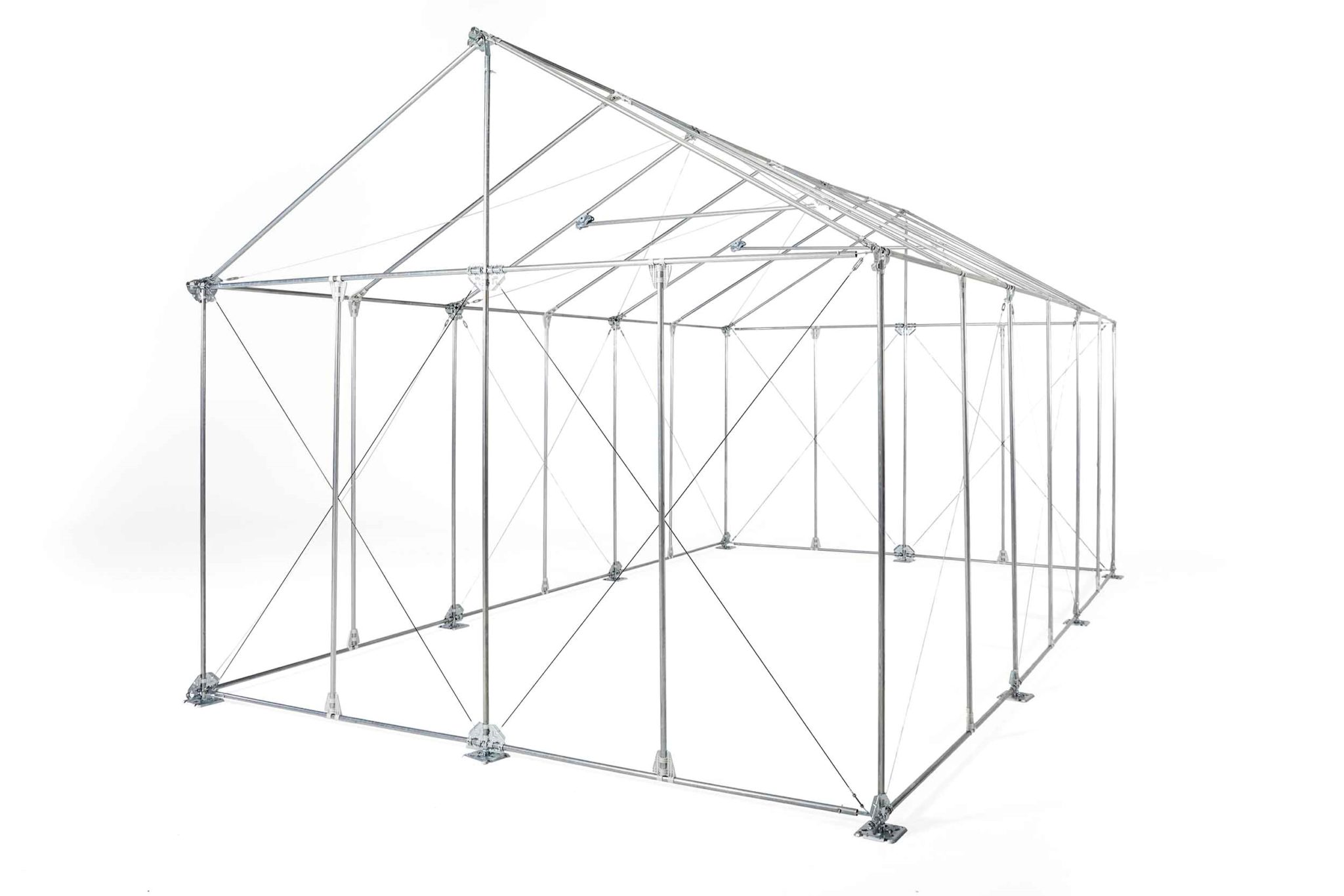

Steel frame mounted with ground anchors

PV system & portable lamp

Flat-packed

5 year shelf life

Min 3 years lifespan for panels

Min 10 years for frame

4-6 hrs assembly time by team of 4

Up to 140 units assembled per day

Sphere minimum standards

Size

17.5 sq. m / 188.4 sq. feet

(H) 2.83 m x (L) 5.68 m x (W) 3.32 m

(H) 9.2 ft. x (L) 18.6 ft. x (W) 10.9 ft.

Weight

160 kg / 352.7 lb. (shelter 140 kg / packaging 20 kg)

  • 28m/s or 101km/h wind resistance
  • Passes artificial rain test with no leakage
  • Minimum 2-minute escape time
  • Withstands 10kg/m2 snow load

20 DC container: 17 units

40 DC container: 36 units

40 HC container: 48 units

Truck: 52 units

We ship via air, road and sea from Poland, Panama and Türkiye. Contact us for more information.

Ventilation, Door, Wall panels, Roof panels, Window, Flat-pack, Floor sheet

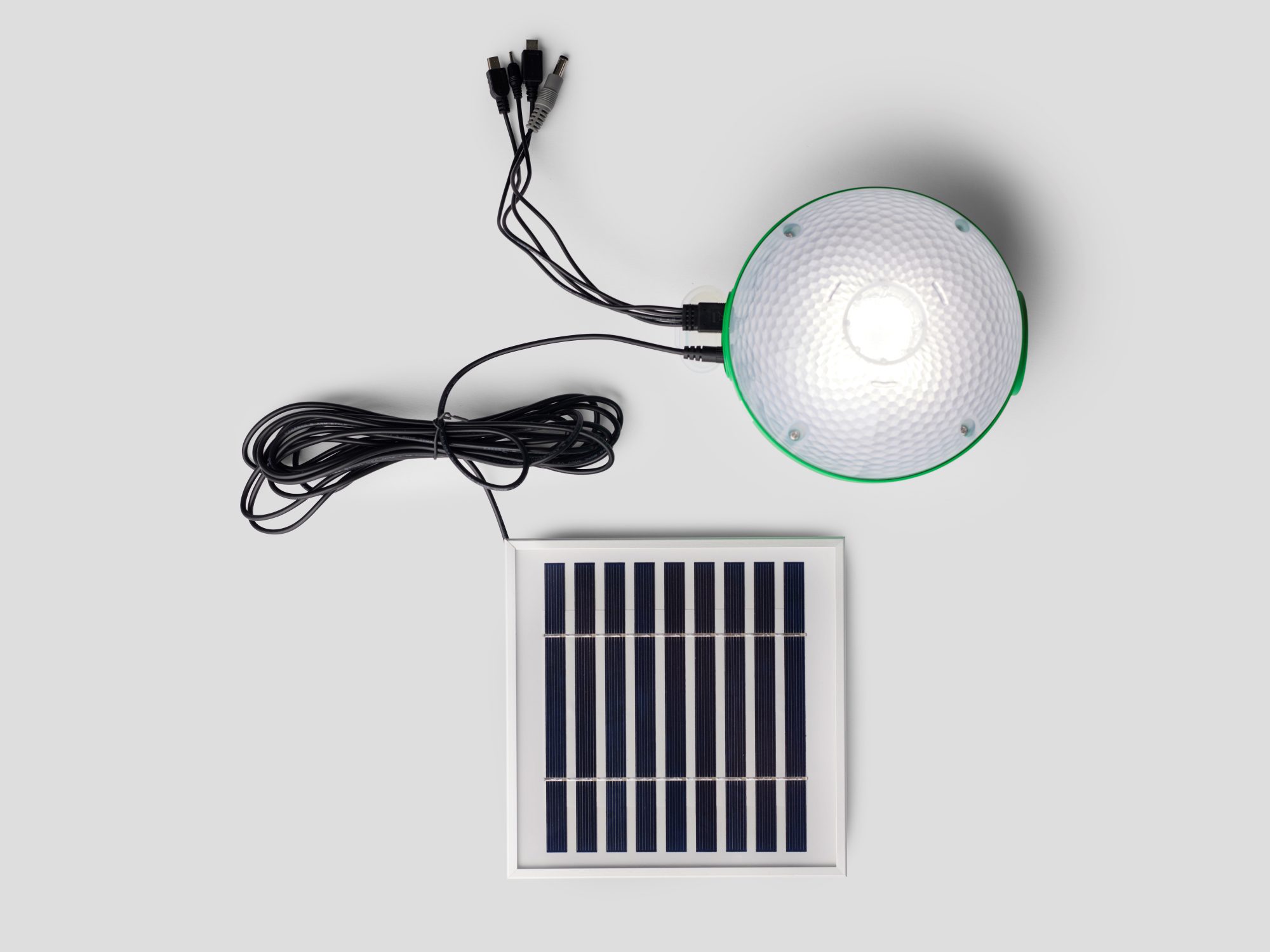

PV system and portable lamp

Ventilation

UV and heat resistant polymer plastic

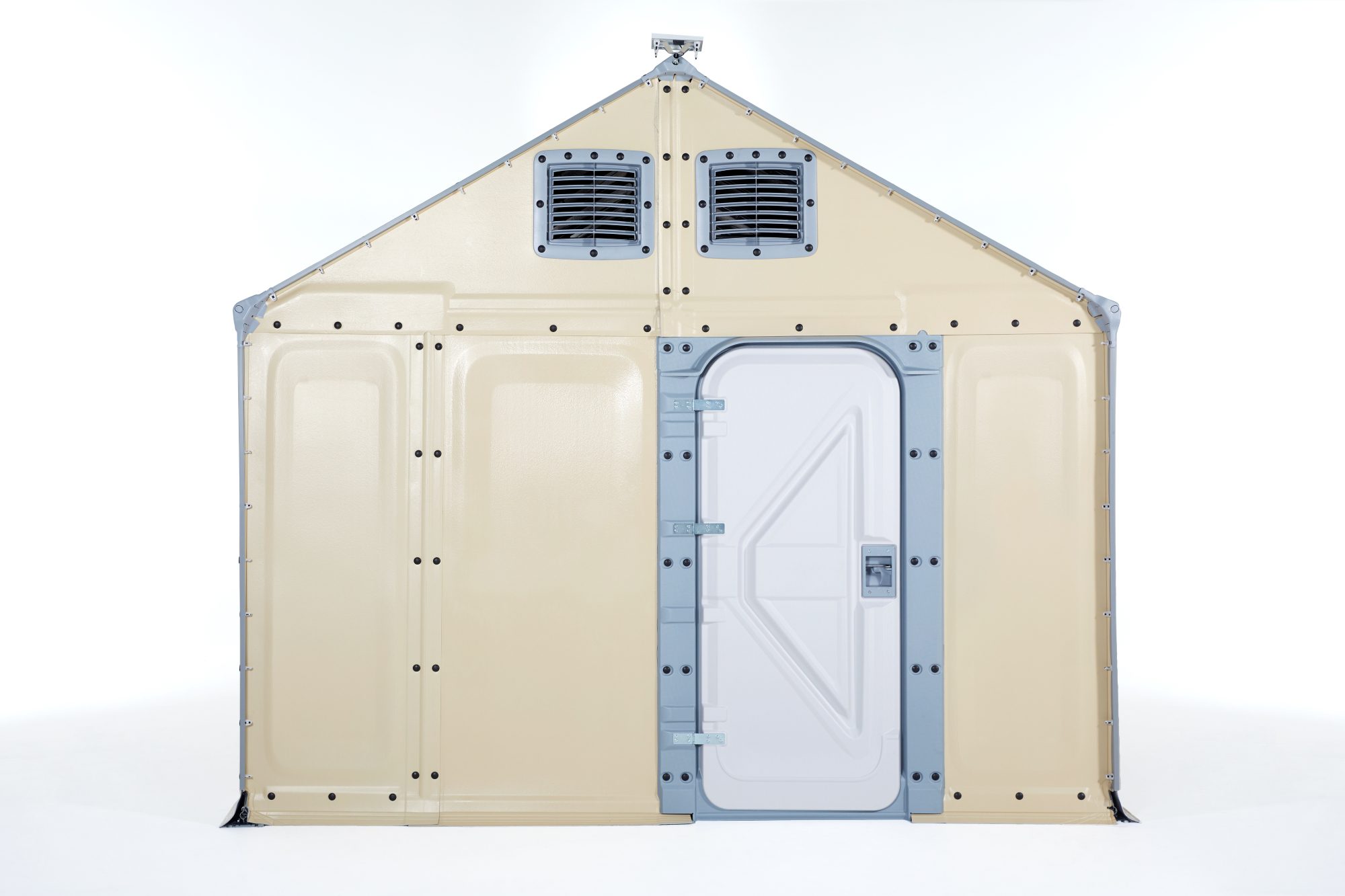

Door

High-resistant door and hinges with lock, which can be padlocked from both sides for added safety for women and children

Wall panels

Polyolefin foam panels treated with fire retardant and UV protection

Roof panels

Polyolefin foam panels treated with UV protection

Window

Intrusion prevention window with mosquito net and shade made of UV and heat-resistant polymer plastic

Flat-pack

Cardboard boxes designed for efficient storage and shipping in trucks and containers from warehouse to last-mile delivery

Floor sheet

Hight adjustable, flood-preventing tarpaulin made of woven high-density polyethylene fibres

Contact us to access technical specifications and other information about our shelters.
