RHU Structure

The RHU Structure is a sustainable shelter that lasts throughout the duration of displacement and beyond its basic purpose as emergency shelter.
Incremental approach

In an emergency, the reliable steel framework can be clad with tarpaulin and upgraded with local material over time.

User led process

Residents can apply their expertise and building traditions, fostering independence and creating livelihood opportunities and control.

Localised

Culturally and climatically adaptable, it may be combined with various materials and techniques in different responses and contexts.

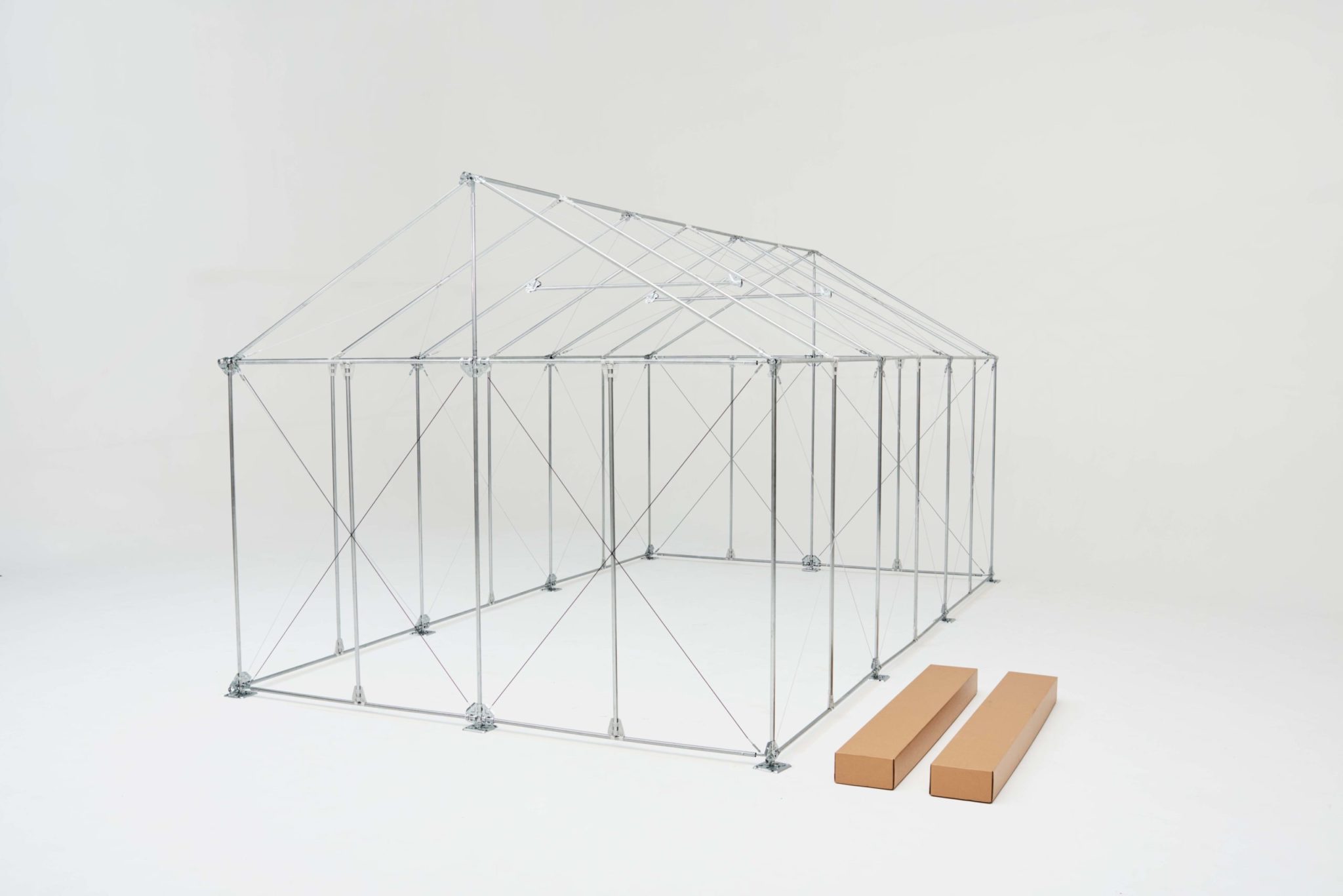

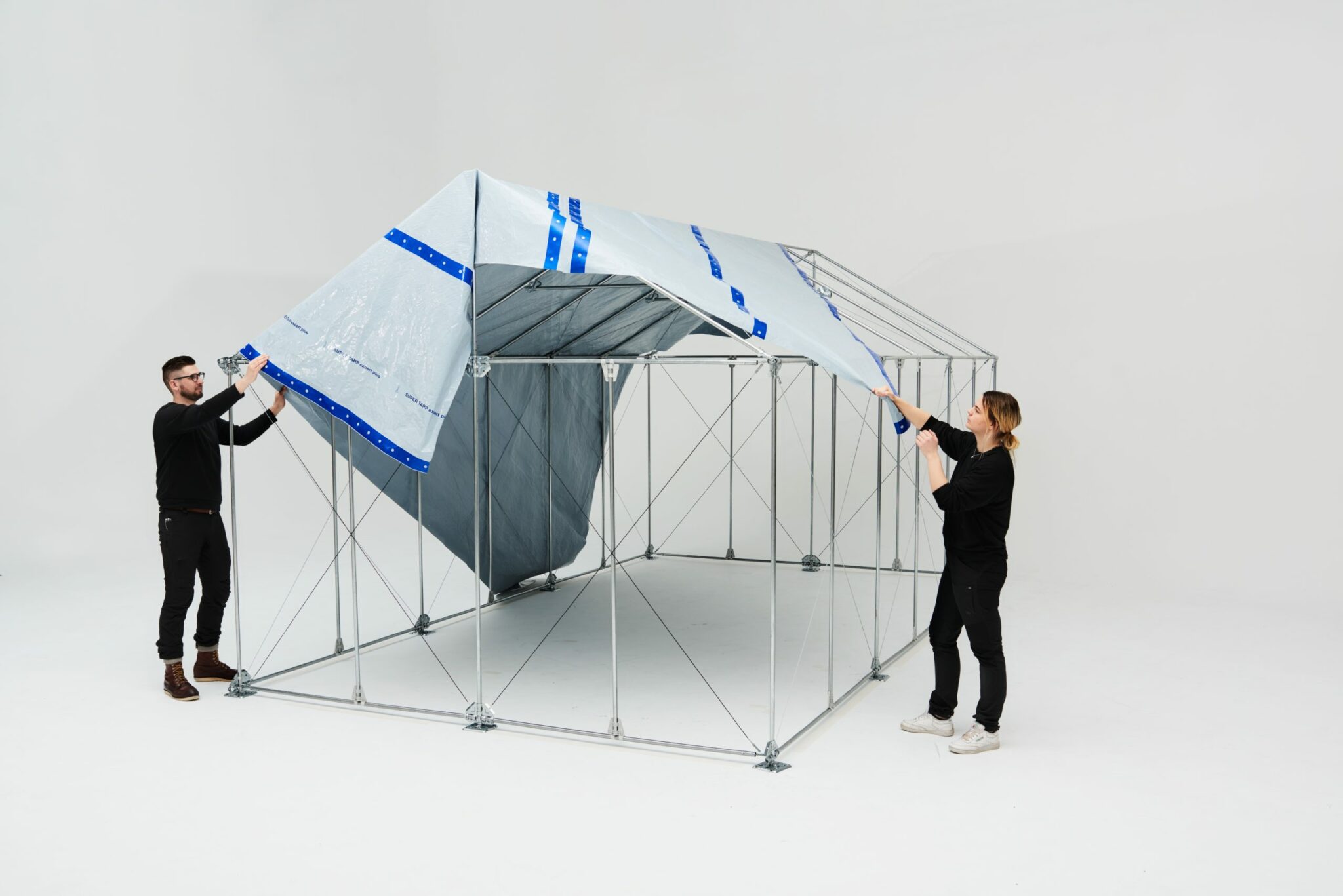

The RHU Structure was developed for contexts where local building materials can be obtained. The metal frame can be wrapped in standard sized tarpaulin for deployment in emergency response, while the walls and roof may be upgraded with locally sourced building materials and attached to the frame with various techniques.

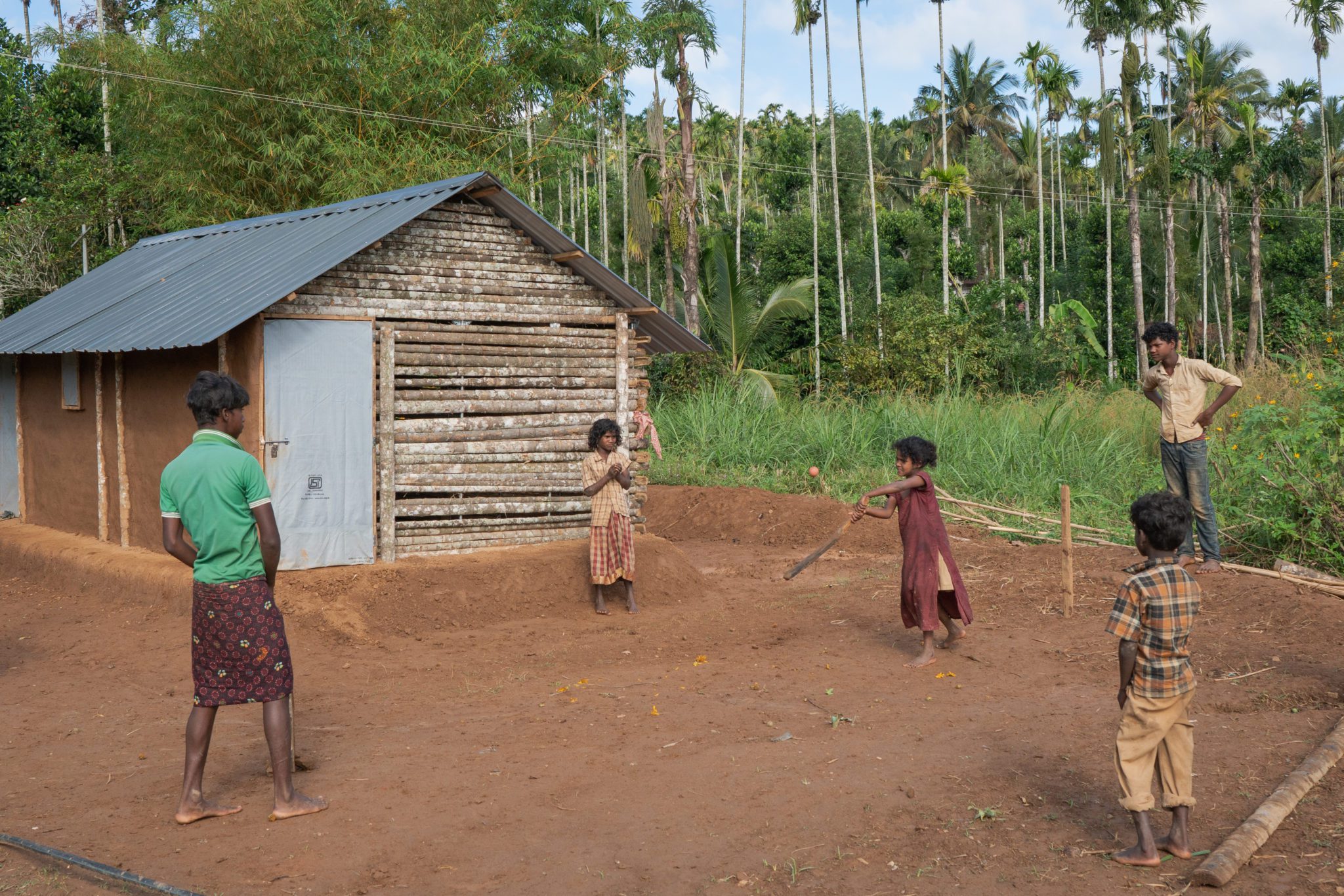

RHU Structure’s lifespan can be extended by adapting it to different shelter needs based on local climate and culture. Partners and residents can customize it over time and throughout displacement.

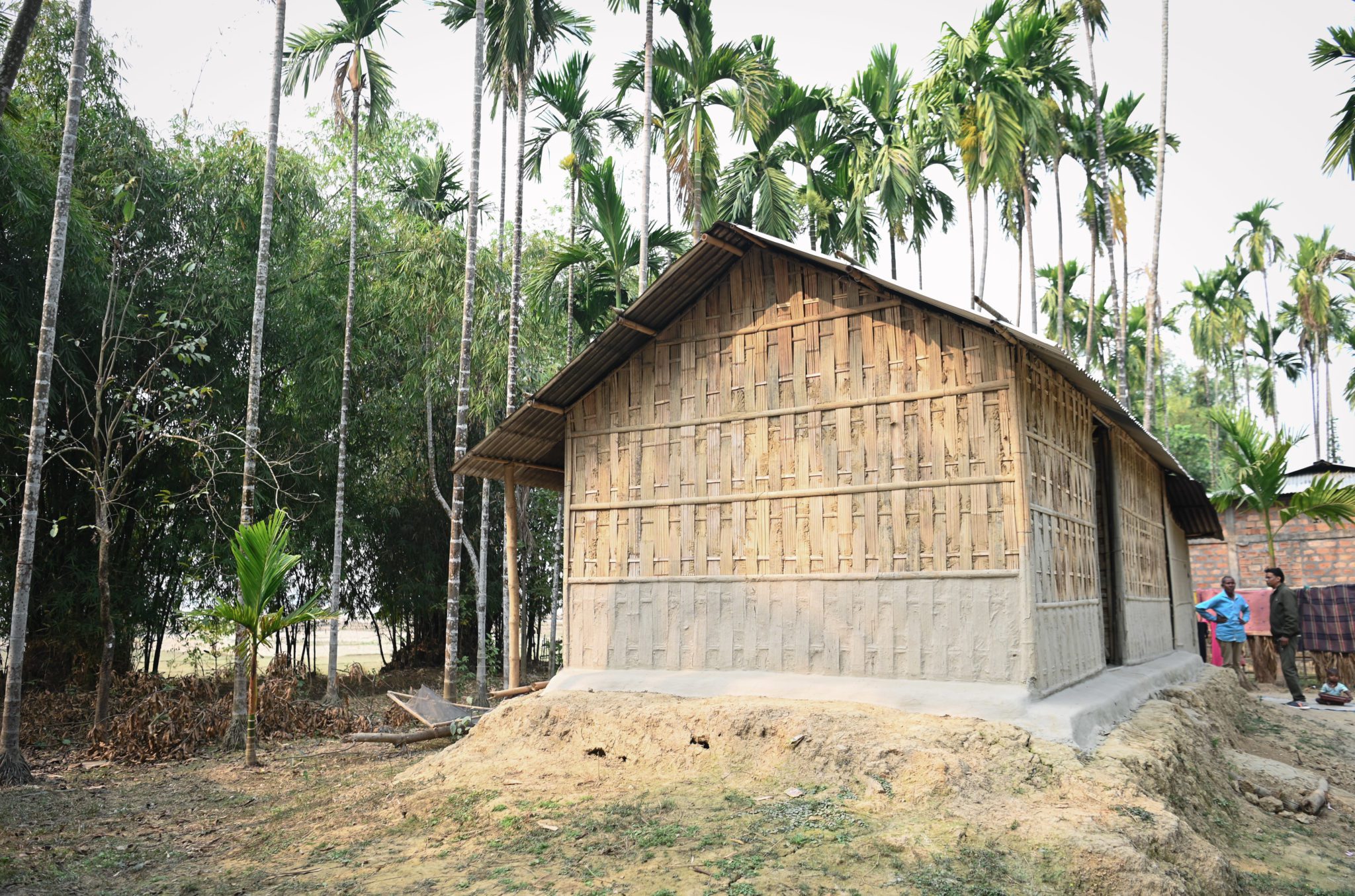

A structure clad with bamboo walls and a tin roof in Assam, India.

Features and measurements

Steel frame mounted with ground anchors

Flat-packed in two boxes

3 year shelf life

10 year lifespan

Assembled by a team of four in one hour without additional tools

Developed according to the Sphere minimum standards

Size

17.5 sq. m / 188.4 sq. ft.

(H) 2.83 m x (L) 5.68 m x (W) 3.32 m

(H) 9.2 ft. x (L) 18.6 ft. x (W) 10.9 ft.

Weight

69 kg / 152 lbs.

  • 28m/s or 101km/h wind resistance
  • Frame made of fire retardant material
  • 10kg/m2 snow load.

We ship via air, road and sea from Poland, Panama and Türkiye. Contact us for more information.

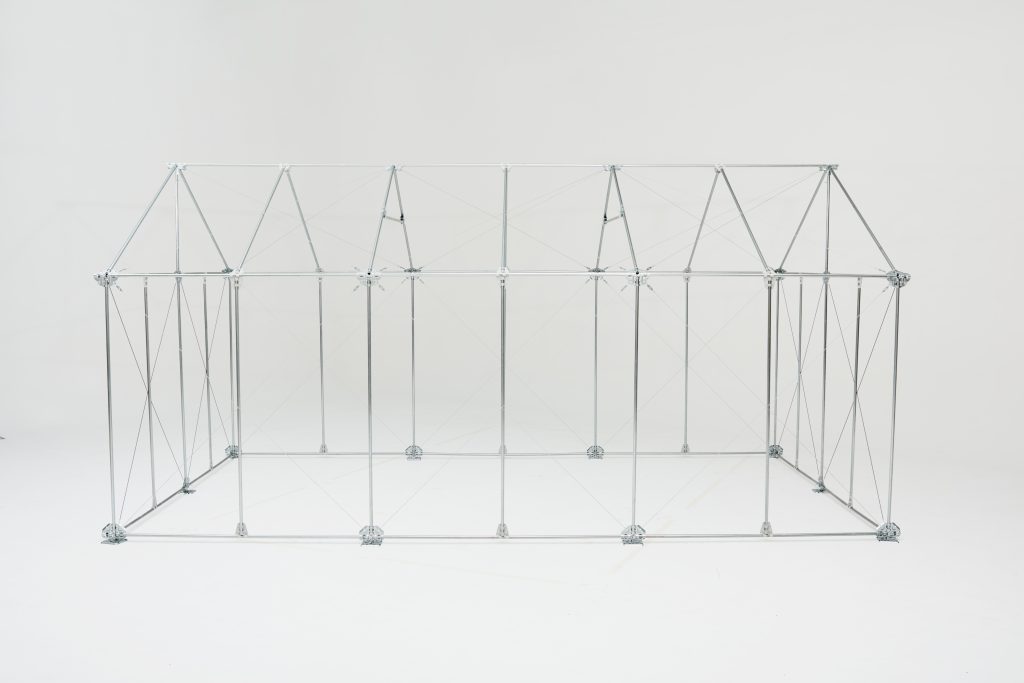

Frame

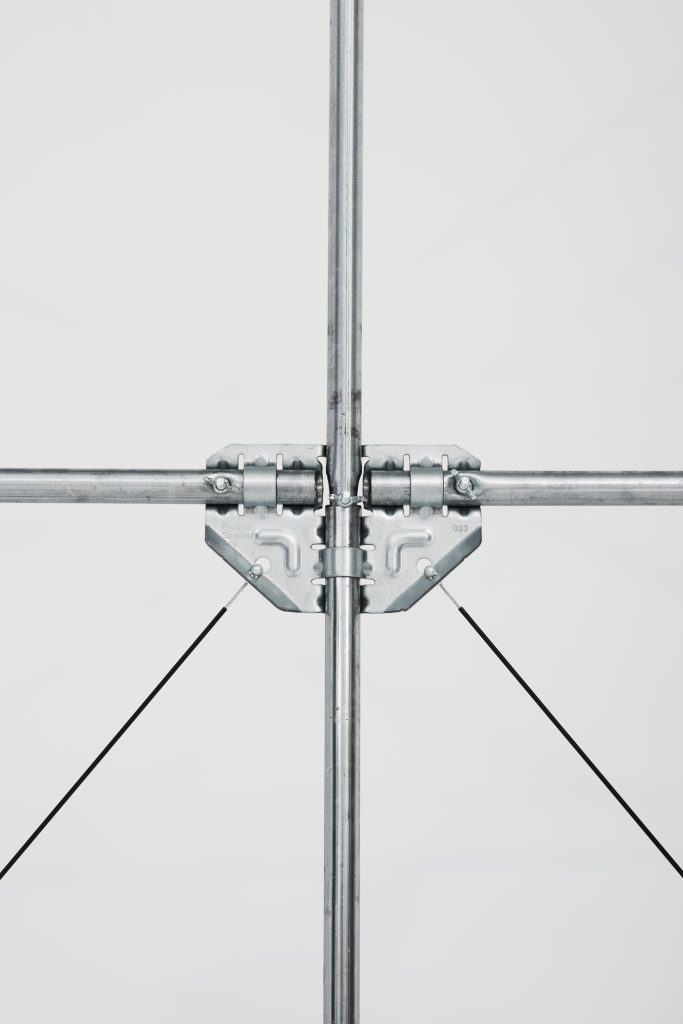

Small connection components
Foundation

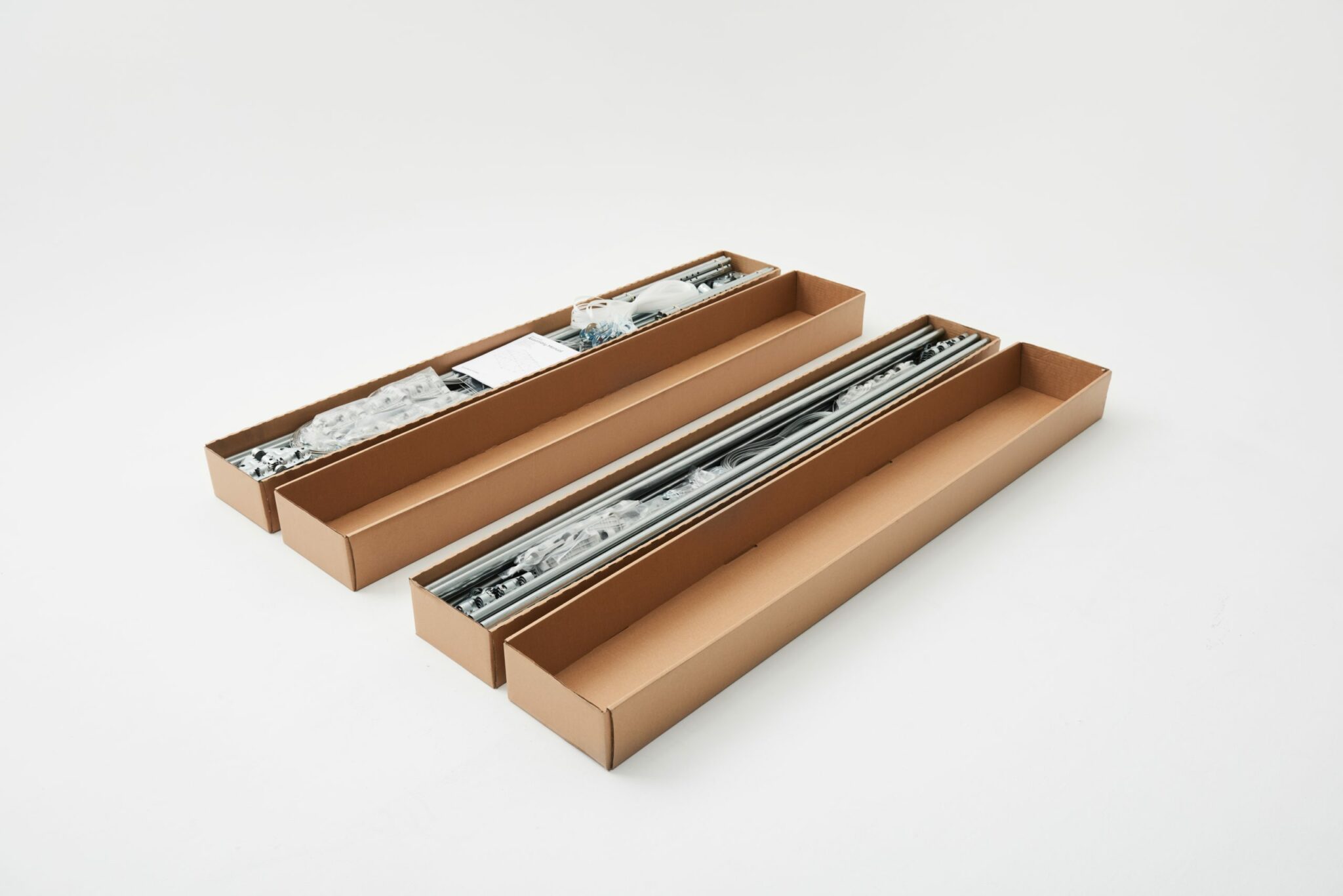

Flat-pack

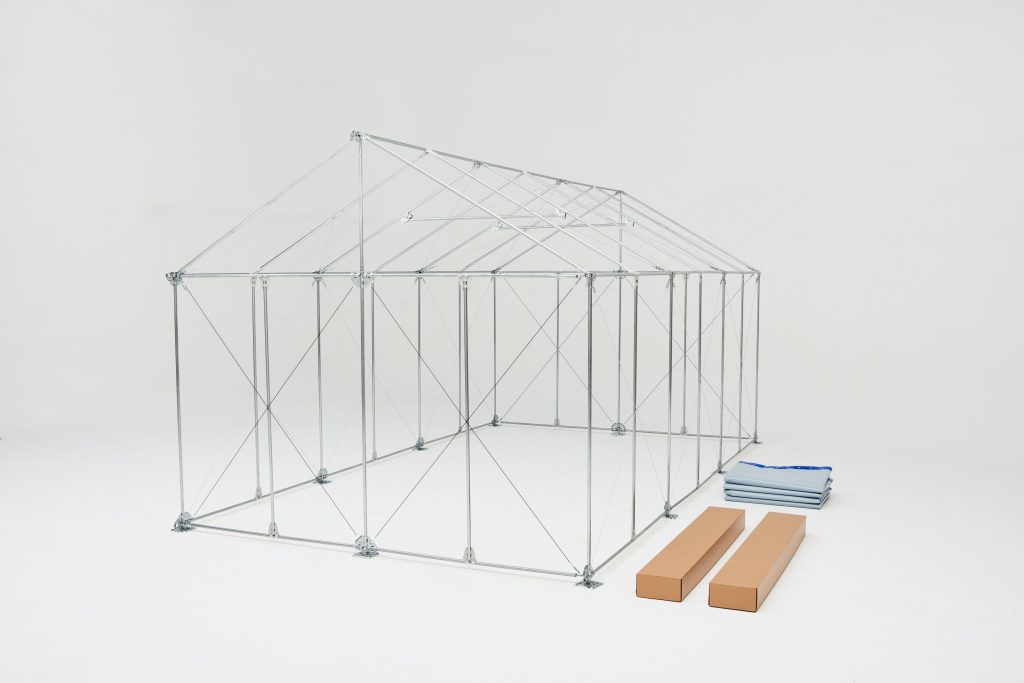

Assembly overview

Related projects

Technical information

Contact us to access technical specifications and other information about our shelters.
